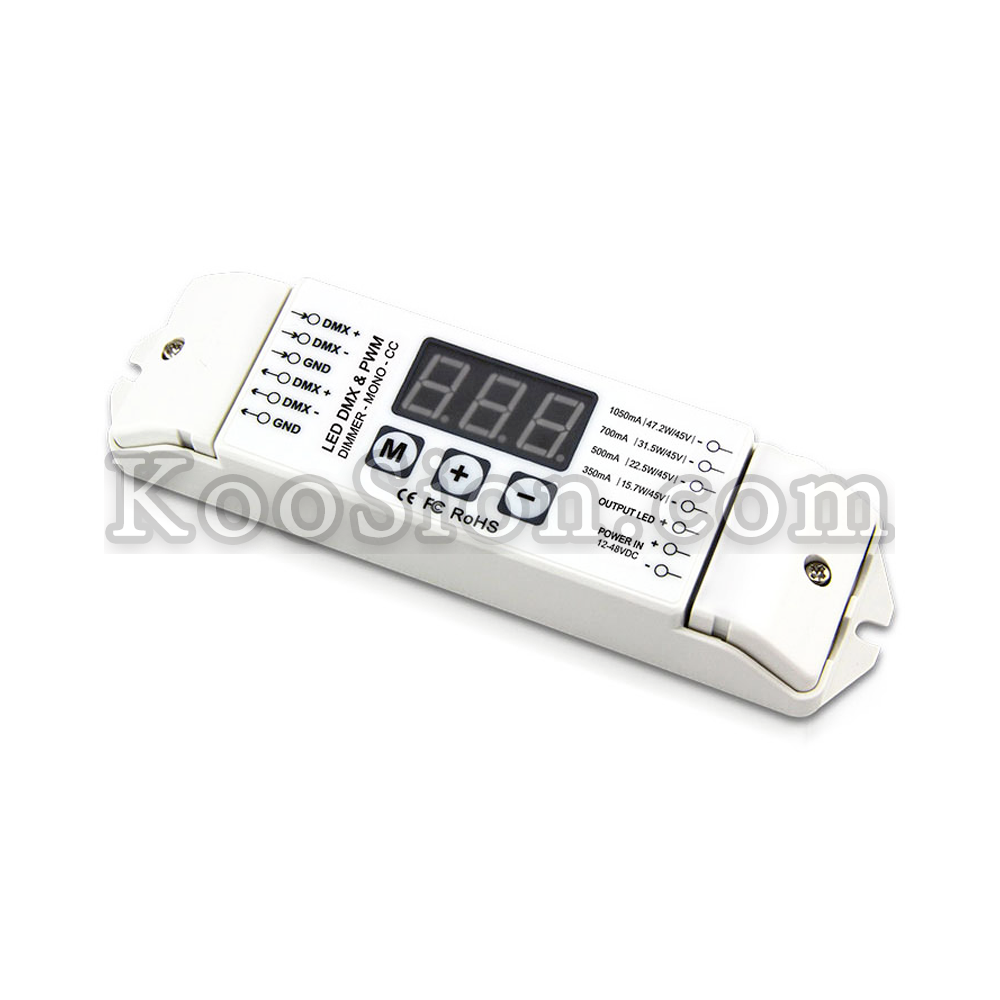

Professional-grade single channel constant current DMX512 decoder designed for precision dimming of high-power LED fixtures. This versatile driver allows you to select between 350mA, 500mA, 700mA, and 1050mA output currents to match your specific LED requirements. With its integrated digital display and PWM dimming technology, it provides a flicker-free, smooth 0-100% dimming experience for architectural and commercial lighting applications.
Product Overview:The KooSion Constant Current DMX Decoder is the ideal solution for projects requiring direct control of high-power LEDs. By integrating the DMX decoding and constant current driving functions into one compact device, it simplifies installation and ensures optimal performance and longevity of your LED light source.
Key Features:
Adjustable Constant Current Output: Multiple current levels (350/500/700/1050mA) selectable via on-board jumpers or settings.
Digital Display Interface: Easy-to-read 3-digit LED display for quick DMX512 address setting and status monitoring.
Flicker-Free PWM Dimming: High-frequency PWM ensures smooth, stable dimming without any perceptible flicker, even on camera.
DMX512 Standard Compliant: Seamlessly integrates with any standard DMX512 control system.
Robust Protection: Built-in safety features to protect against over-heating and incorrect wiring.
Technical Specifications:
Input Voltage: DC 12V - 48V
Output Current: 350mA / 500mA / 700mA / 1050mA (Adjustable)
Output Power: Up to 47.2W (at 45V/1050mA)
Control Protocol: DMX512 / PWM
Dimensions: Compact housing with easy-mounting tabs
