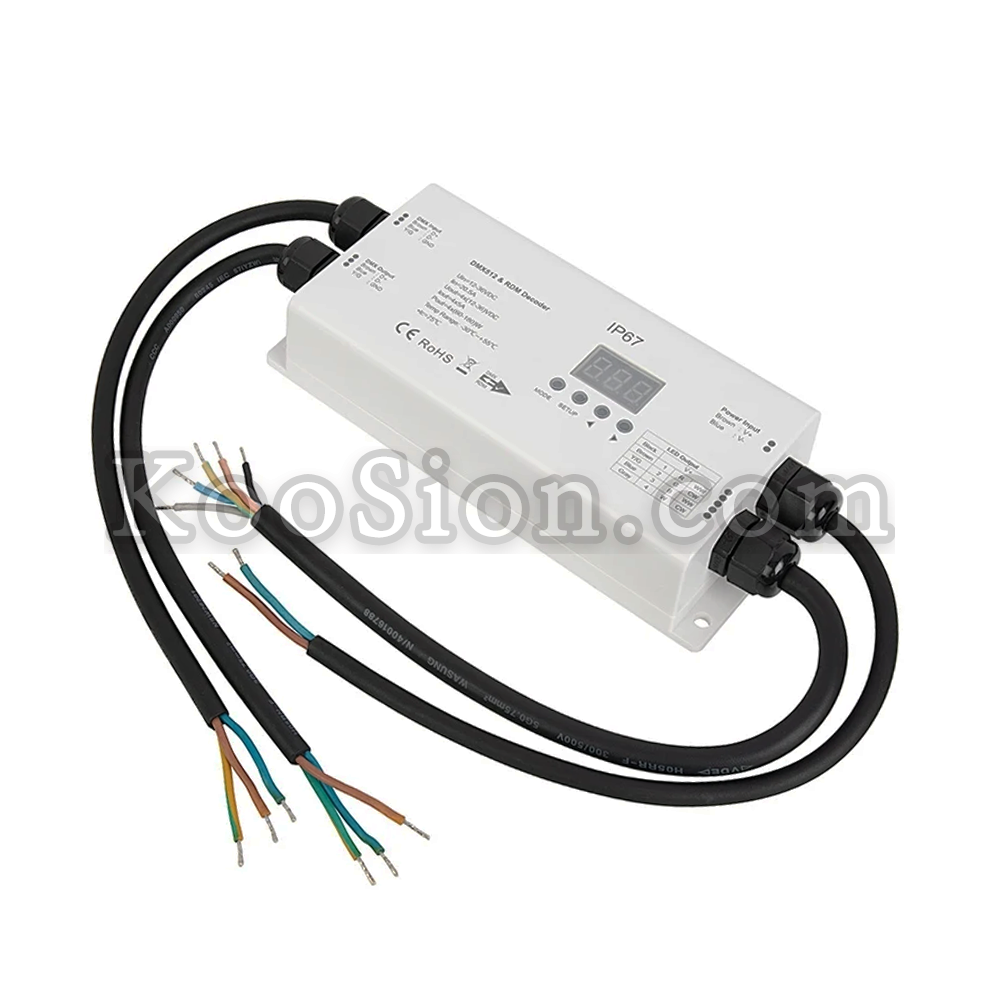

IP67 Waterproof 4-Channel DMX512 & RDM Decoder

Product Overview:This industrial-grade DMX512 & RDM decoder is engineered for demanding outdoor architectural and landscape projects. With an IP67 waterproof rating, it ensures stable performance in rain, snow, and humid environments. The built-in RDM (Remote Device Management) protocol allows for remote address setting and monitoring, significantly reducing installation and maintenance labor costs.

Key Features:

• Full Waterproofing: IP67 rated, fully sealed design for reliable outdoor use.

• RDM Support: Bidirectional communication for remote DMX address configuration.

• Precision Control: High-resolution PWM dimming for smooth, flicker-free lighting transitions.

• Digital Interface: Integrated 3-digit LED display and waterproof buttons for easy manual setup.

• Industrial Durability: Wide operating temperature range from -30°C to +55°C.

Technical Specifications:

• Signal Type: DMX512 (A) & RDM

• Input Voltage: DC 12V - 36V

• Output Channels: 4 Channels

• Output Current: 5A per channel (Max 20A)

• Protection: Short circuit, over-load, and over-temperature protection

• Dimension: Heavy-duty compact housing for easy installation
